Haul Out

Every couple of years Fiddler needs to come out of the water. Usually it gets hauled out for a visual inspection of the hull, to apply a coat or two of anti-fouling paint, and to clean up the propellers, drive shafts, thru-hulls, and struts. In addition, this time Fiddler’s seals on the shafts and rudder posts that keep water out needed to be replaced. One of the rudder post seals and both shaft seals were leaking a little. All could have likely gone longer, but probably not two more years until the next haul out. So it was time to replace them. Plus I would rather not defer maintenance on items that could sink the boat if they failed.

The bottom paint was getting thin in places and definitely needed refreshed. I use an ablative paint that washes away with use of the boat, similar to a bar of soap. New paint can be applied directly over the old paint and it never needs to be scraped off, unlike hard non-ablative paint. A good power washing cleans it up nicely for the new paint.

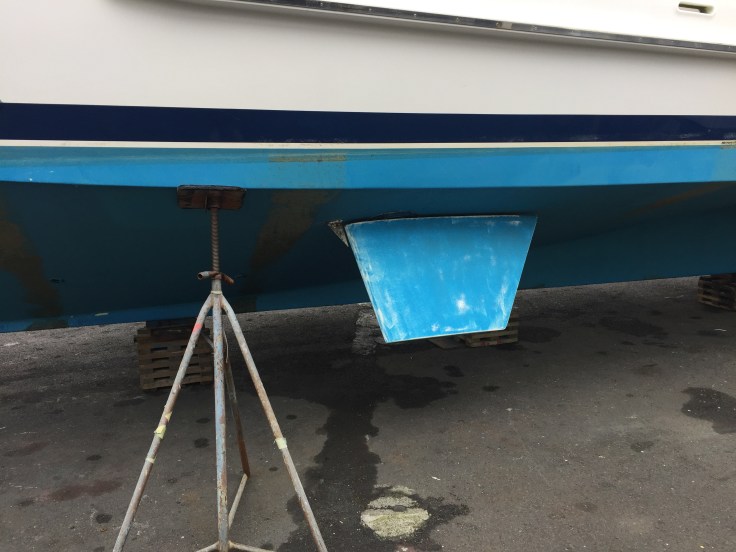

IMG_2309
The bottom paint is in pretty good shape after two years in the water.

In the picture above, there is supposed to be a weed cutter in front of the stabilizer fin in order to keep weeds and kelp from getting caught in the fin. Finding things like this is another good reason for inspecting the hull out of the water. Coming home from Alaska last summer, I kept catching kelp on this fin. Now I can see why. The yard made another one for me and screwed it back in place.

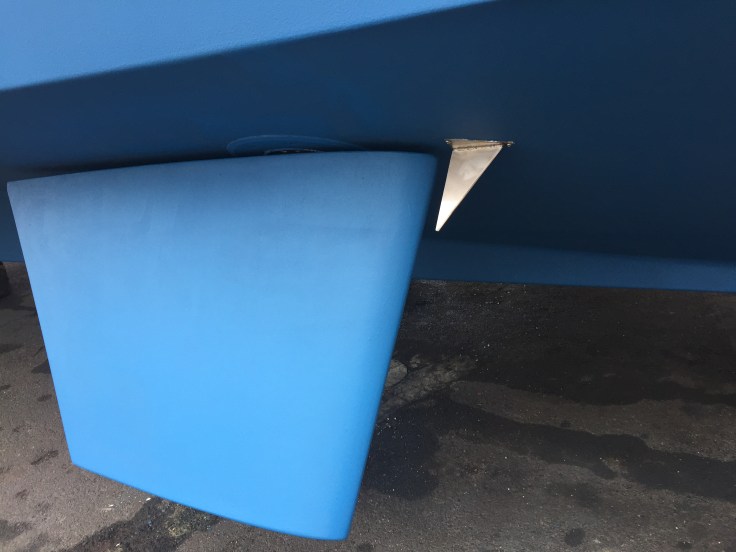

IMG_2317
New weed cutter for the stabilizer fin.

It all cleaned up nicely. I usually have a diver check the condition of the hull and replace the zinc anodes every four months. The anodes (those round things attached to the shaft) were badly corroded, meaning they were doing their job so the shaft doesn’t corrode. We replaced them too.

IMG_2319
Fresh bottom paint, clean running gear, and new anodes.

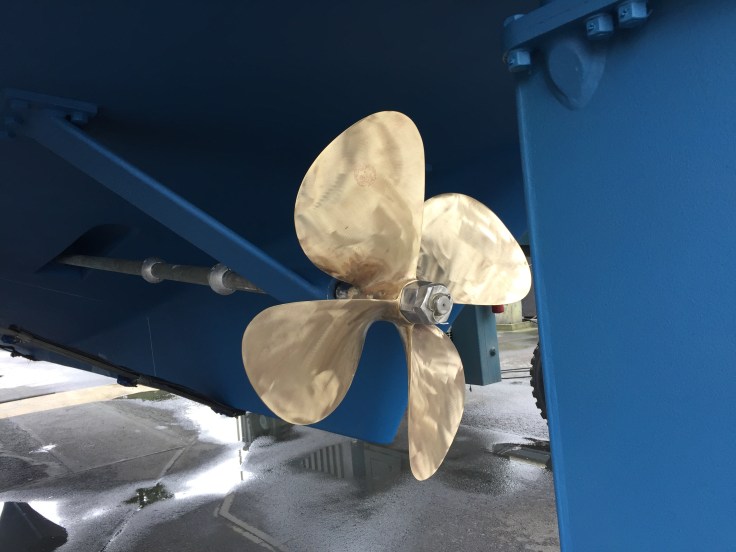

IMG_2325
The props are held on with two nuts and a cotter pin. I wouldn’t want to lose one of them.
IMG_2323
The bow thruster with a new anode.

Replacing the shaft seals requires removing the shaft from the transmission, sliding it backwards, then removing the rubber boot and discs that keep water out. The rubber boot is the weak link in the set up, which gets weaker with age.

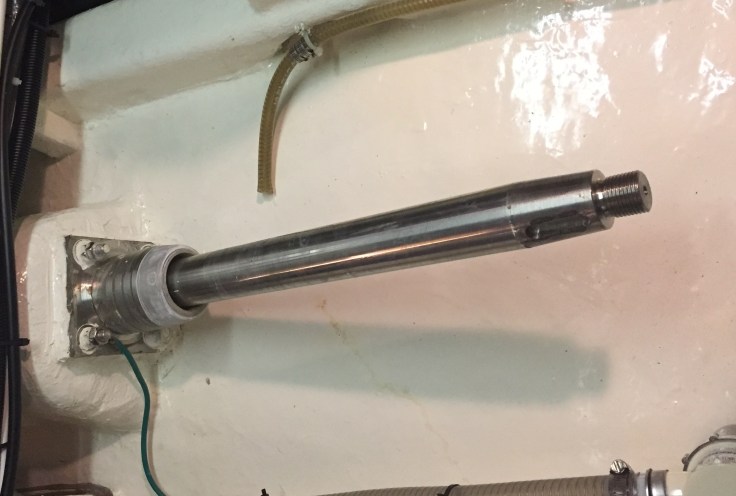

IMG_2311
The drive shaft removed from the transmission and slid backwards. The rubber boot, steel disc, and carbon disc have been removed.

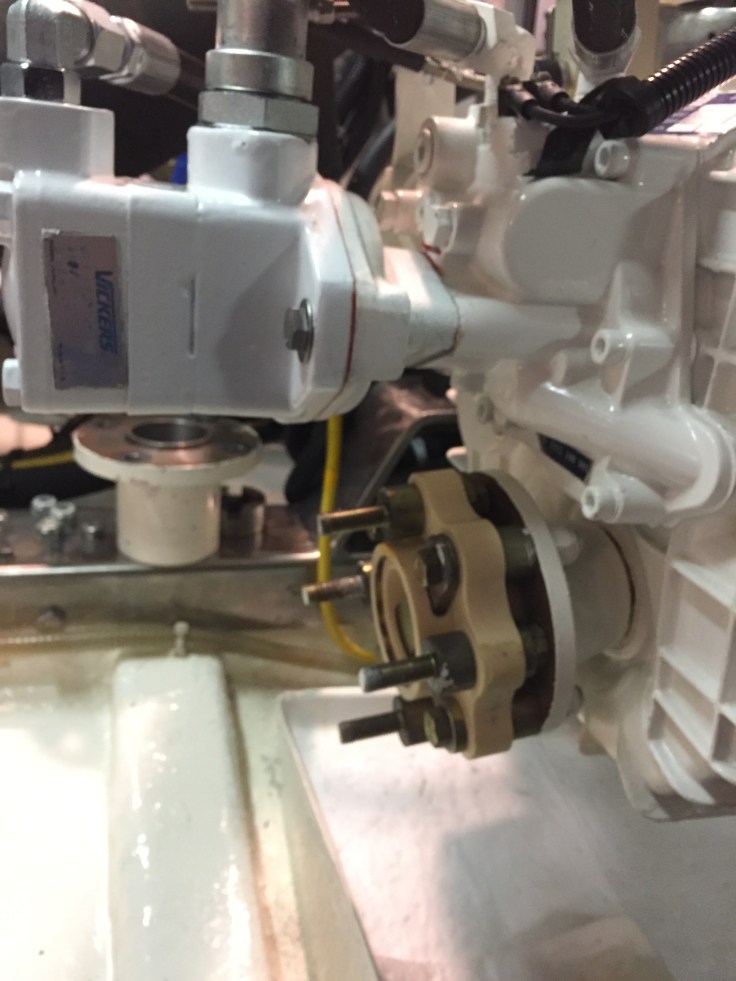

IMG_2312
The transmission to which the drive shaft connects.

Here is the new seal. The stainless steel disc is attached to the shaft. The black carbon disc is held in place against the stainless disc, forming a water tight seal. The stainless disc rotates with the shaft while the carbon disc remains stationary. The rubber boot keeps out the water and is double clamped on both ends. The black hose feeds a small amount of water from the engine for lubricating the rotating discs.IMG_4192

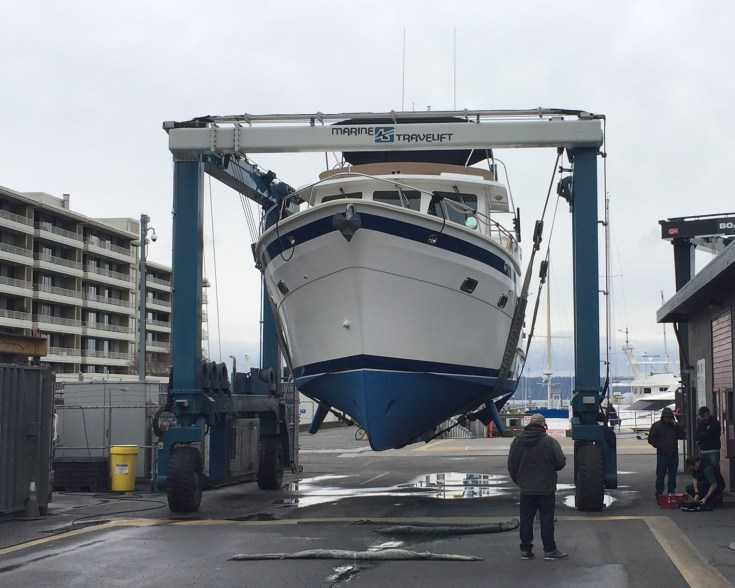

With the work completed, time to put Fiddler back in the water, good for two more years!IMG_2318IMG_2324
